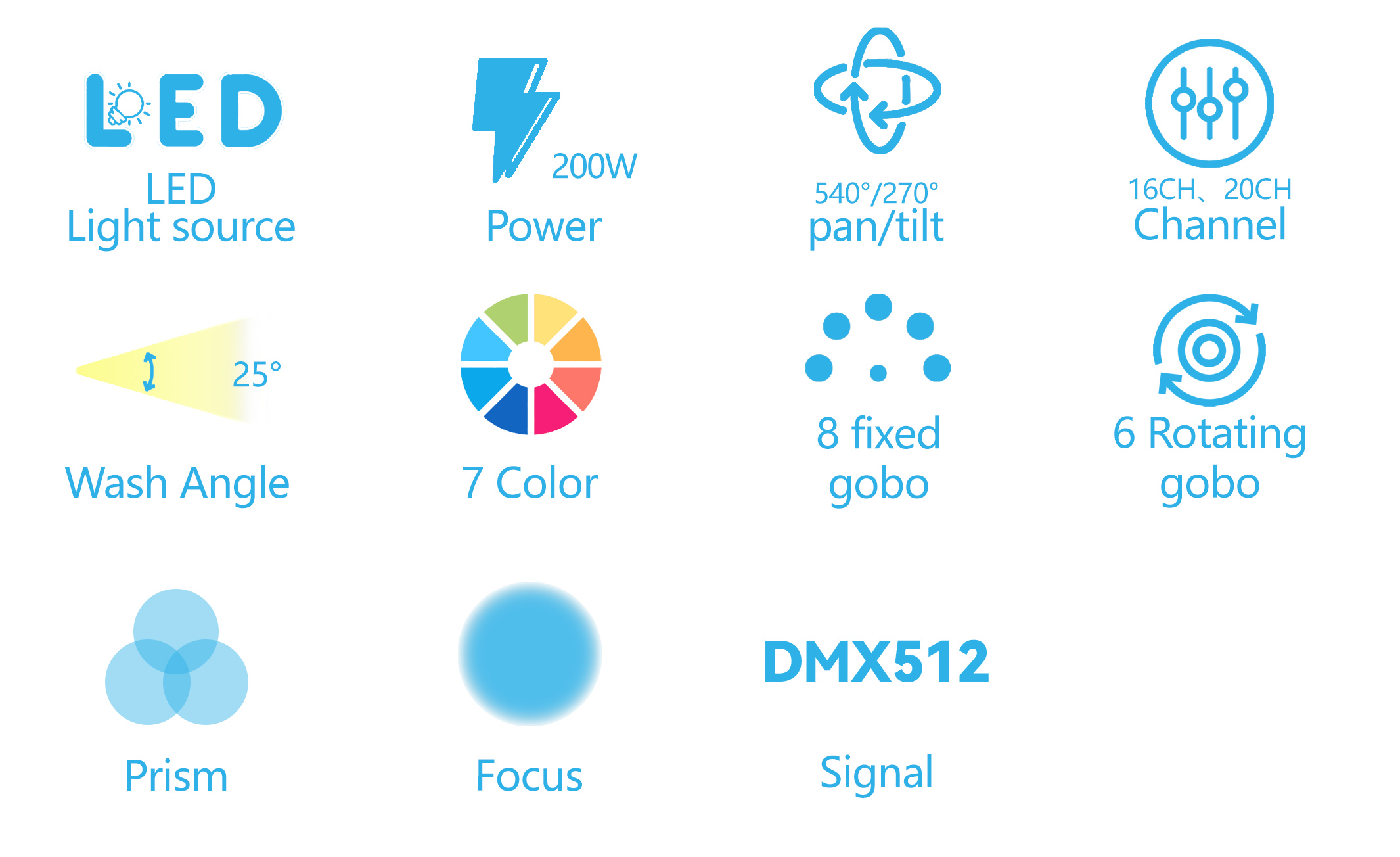

Voltage: AC100-240V 50/60Hz

Light source: 120W Super brightness LED, 7  RGBW 4 in 1 LED (Can be used for wash effect)

Power:  200W

Operating mode:  DMX512, master-slave, automatic, sound

Control channel:  16 channels / 20 channels

Dimming:  0-100%LED Linear dimming

Strobe:  High-speed electronic strobe

Horizontal and vertical:   540°、270°；16bit

Rotate the gobo: 6 Graphics(4 metal graphics + 2 glass graphics)

Fixed gobo: 8 Graphics

Color wheel:  7 colors plus white light, half color, rainbow effect

Prism:  3 prism

Focusing: electronic focusing

Beam angle: 16°

Wash angle: 25 °

Display board:  color screen LCD display，Can switch between Chinese and English，

Forward and reverse display

Size: 22.5*21*36CM

Net weight：6.3KG

•
